Description

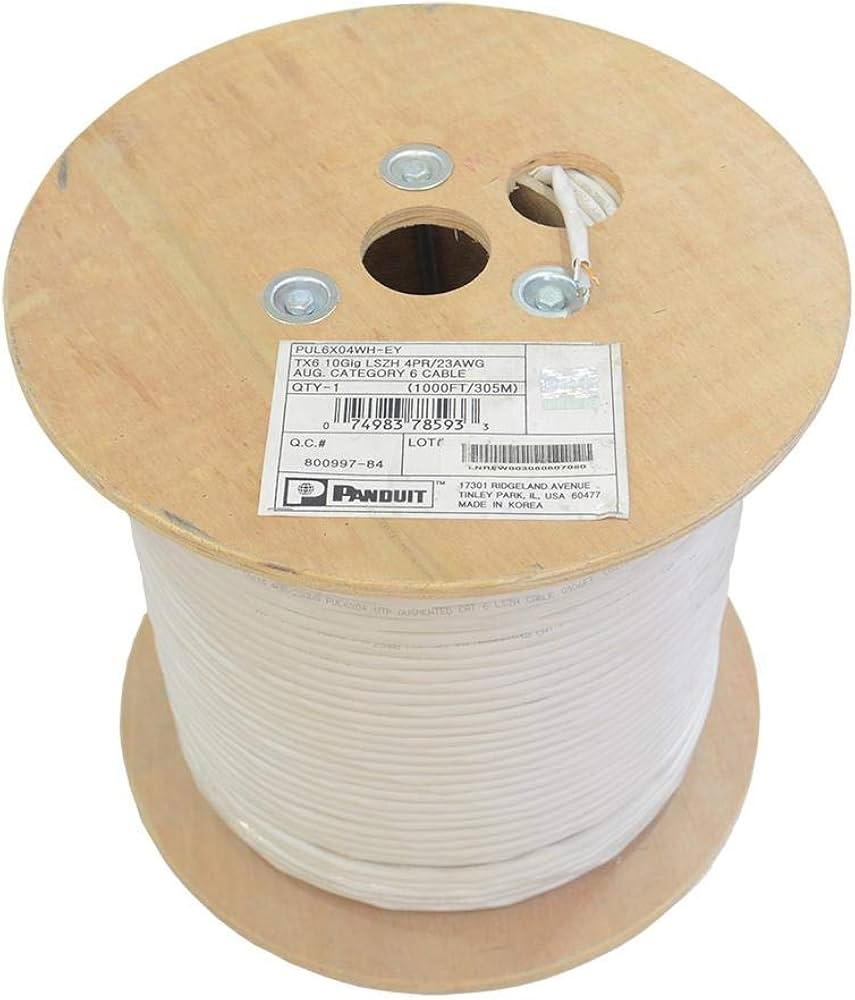

Panduit TX6A Category 6A U/UTP Copper Cable
Specifications
| Environment | Indoor |
| Performance Level | Category 6A |
| Cable Construction | U/UTP |
| Flammability Rating | LSZH |
| EuroClass Rating | Dca-s2,d2,a1 |
| Resistance Properties | Flame-Resistant |
| Jacket Material | High-Density Polyethylene |
| Region | EMEA |
| Nominal Cable Outside Diameter (In.) | 0.28 |
| Nominal Cable Outside Diameter (mm) | 7.2 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | 0 |
| Minimum Installation Temperature (°F) | 32 |
| Sub Brand | Pan-Net® |
| Maximum Installation Tension (N) | 110 |
| Maximum Installation Tension (lb) | 25 |
| Bend Radius (In.) | 1.15 |
| Bend Radius (mm) | 57.6 |
| Number of Pairs | 4 |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Overall Length (ft.) | 1000 |
| Overall Length (m) | 305 |
| Conductor Gauge | 23 AWG |
| Conductor Gauge (mm) | 0.6 |
| Insulation Material | Polyethylene |
| Acidity Rating | a1 |
| Insulation Diameter (In.) | 0.05 |
| Insulation Diameter (mm) | 1.2 |
| Maximum Voltage (V) | 80 |
| Standards Met | RoHS Compliant |
| Color | White |
| Flaming Droplets Rating | d2 |
| Packaging Type | Reel |
| Product Type | Bulk Copper Cable |
| Smoke Rating | s2 |
| EuroClass Flame Rating | Dca |
Packaging Detail
| UPC | 61305636526 |
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 4.4503 |
| Std. Ctn. Qty. | 24 |
| Std. Ctn. Volume (cf) | 106.8071 |
