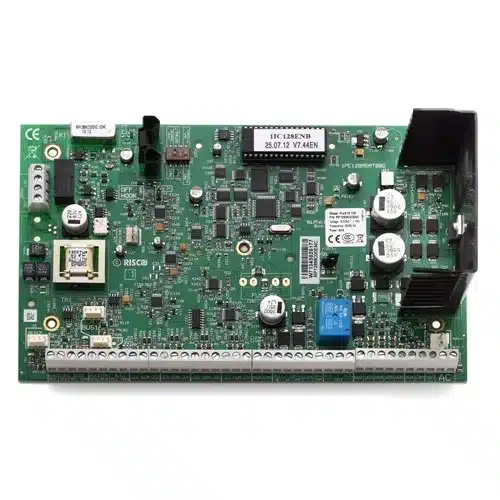

Prosys Control Panel

8 zones expandable up to 128
4 or 8 system partitions
Auto-Install™ technology assures simple installation
Bus test for pinpointing faulty wiring
Triple EOL termination for Grade 3: Allows alarm, tamper and mask on each single-zone
4 groups per partition enabling partial arming of a group of zones within a partition
Up to 32 schedules for arm/disarm and output control, supporting 2 intervals per day
High-security features such as double password, keypad disable during the scheduled arm, and 2 separate buses
6 fully programmable utility outputs onboard ? one 3A relay, one 500mA open collector and four 70mA O.C.
False alarm prevention features such as fire alarm verification, programmable swinger shutdown, cross zoning, pulse counting,
transmission delay, audible/visual exit delay
One-man walk test
Watchdog periodically performs a self-test of the system
Up to 99 user codes
Up to 999 event log
Box tamper
Bell/Siren tamper
Built in Siren Driver (900 mA)
Automatic fuses
Model names:
RP128 ProSYS™ 128
RP140 ProSYS™ 40
RP116 ProSYS™ 16
